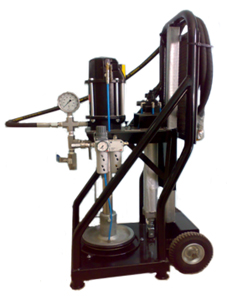

Complete with heavy duty tube steel frame & solid wheels, pneumatic lift ram, air filter lubricator assembly, designed for rugged field work on pipelines, platforms and wellheads. Includes standard 6 meter high pressure hose assembly with 1/2" whip hose assembly, check valve, 10,000 psi pressure gauge.

• Pumps from a standard 40 lb. open top metal pail (5 gallon pail size)
• Pump outlet: 1/2-14" FNPT
• Air inlet: 1/2-14" FNPT
• Maximum Discharge Volume: 2.1 lbs./min (.95 kg.)
• Required Air Volume: Approximately 40 cfm.

Technical Specifications:

• One (1) High Pressure Sealant/Lubricant SuperSeal Pump: 100:1 Ratio with 10,000 psi maximum working pressure: 100 psi air inlet Pressure (40CFM)
• 6 meters supply hose quick connect 1/2" whip hose, complete with 10,000 psi gauge, 10,000 psi Check Valve
• Parts Description & Function
• Detailed Diagrams
• Heavy Duty Frame
• Whip Hose
